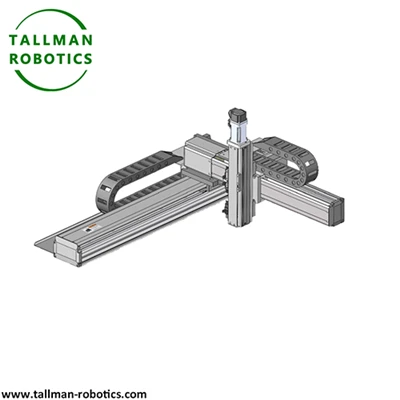

3 Axis Cartesian Neeg Hlau

3 Axis Cartesian Robot, uas yog, peb -axis Cartesian tswj neeg hlau, nrog nws qhov zoo ntawm cov qauv yooj yim, raug siab, thiab yooj yim programming, tau dhau los ua lub hauv paus thiab cov cuab yeej tseem ceeb hauv kev lag luam automation.

3 Axis Cartesian Robot ua haujlwm raws li Cartesian kev sib koom ua ke, suav nrog peb qhov kev sib koom ua ke ntawm cov kab ncaj nraim X, Y, thiab Z. Nws yog tsav los ntawm servo motors kom ua tiav cov kab ncaj nraim raws li peb axes siv pob screws lossis linear qhia. Repeatability qhov tseeb feem ntau tuaj yeem ncav cuag ± 0.01- ± 0.1 millimeters, uas tuaj yeem ua tau raws li ntau yam kev ua haujlwm precision. Nws qhib modular tsim tso cai rau cov neeg siv hloov kho qhov kev mus ncig thiab kev thauj khoom muaj peev xwm raws li kev ua haujlwm tiag tiag. Qhov siab tshaj plaws ntawm ib qho kev thauj khoom tuaj yeem nthuav dav los ntawm ob peb kilograms mus rau ntau pua kilograms, haum rau cov xwm txheej ntawm cov nplai sib txawv.

Cov kev tswj hwm yog lub hauv paus ntawm 3 Axis Cartesian Robot. Los ntawm PLC (Programmable Logic Controller) lossis tus tswj kev ua haujlwm siab, ua ke nrog G-code programming, cov neeg ua haujlwm tuaj yeem yooj yim teeb tsa cov kev taw qhia thiab cov haujlwm tsis ua haujlwm. Qee cov qauv siab - kawg kuj tseem suav nrog cov kev paub txog kev pom, uas siv cov koob yees duab los nrhiav cov khoom ua haujlwm thiab ua tiav qhov kev kho tsis siv neeg thiab kev npaj txoj hauv kev zoo, txhim kho kev ua haujlwm ua haujlwm hauv qhov chaw nyuaj. Nws txoj kev sib txuas ntau qhov txuas ua rau qhov kawg effector ua kom tiav txoj hauv kev nyuaj xws li linear interpolation thiab ncig ncig hauv peb - qhov chaw seem, ua tau raws li cov txheej txheem sib txawv xws li vuam, xa tawm, thiab sib dhos.

Ntawm no, peb qhia txog kev sib xyaw ua ke ntawm Multi Axis Linear System hauv cov ntawv thov nrog cov lej raws li hauv qab no rau koj xaiv rau koj cov haujlwm:

Zoo siab txais tos saib ntau qhov project lossis mus saib peb lub vev xaib video los ntawm Youtube: https://www.youtube.com/@tallmanrobotics

Daim ntawv thov ntawm 3 Axis Cartesian Neeg Hlau tau yuav luag nkag mus rau txhua qhov chaw lag luam. Nws yog qhov kev daws teeb meem zoo tshaj plaws rau kev ua haujlwm xws li CNC tshuab cuab yeej thauj khoom thiab tshem tawm, kev siv cov kab ntau lawm ntawm cov khoom siv tuav, nrhiav kom pom cov khoom siv, laser ua (txiav, vuam, kos npe), tshuaj tsuag, gluing, palletizing, thiab siab -precision sib dhos. Nws qhov chaw ua haujlwm yog lub voos xwmfab tsis tu ncua, nrog rau txoj hauv kev yooj yim thiab kev ua haujlwm yooj yim . 3 Axis Cartesian Robot yog qhov tsim nyog rau kev hloov cov phau ntawv ua haujlwm hauv cov xwm txheej nrog cov txheej txheem ruaj khov thiab nruj nrawm, ua tiav 24- teev tsis muaj kev cuam tshuam ruaj khov. Hauv kev tsim khoom ntawm 3C cov khoom, nws tuaj yeem ua tiav qhov kev sib txuas ntawm cov xov tooj ntawm tes thiab nti nti; Hauv kev lag luam ntim khoom noj, siab -kev ceev sorting thiab ntim cov khoom tuaj yeem ua tiav; Hauv kev ua haujlwm ntawm laser, nrog siab - qhov muaj peev xwm ua tau zoo, nws ua kom cov npoo du thiab meej qhov ntev rau laser txiav thiab engraving. Tsis tas li ntawd, nws tus nqi -kev ua tau zoo yog qhov tseem ceeb. Piv nrog rau ntau tus neeg hlau sib koom ua ke, 3 Axis Cartesian Robot muaj kev saib xyuas yooj yim thiab kev xa mus sai, ua rau nws tsim nyog rau cov lag luam me thiab nruab nrab kom ua tiav cov kab ntau lawm hloov pauv, thiab muab cov kev daws teeb meem zoo thiab txhim khu kev qha rau kev tsim qauv thiab ntsuas kev lag luam.
